Triline Automatic Sliding Door
Behind Triline’s luxury Auto Cavity Slider design is the Dorma CS 80 MAGNEO, featuring advanced magnetic technology for sliding doors. This system boasts an extremely elegant visual appearance combined with the “SoftMotion” safety feature, ensuring the door stops and reverses on light contact in Low Energy Mode. Available with fittings for both glass and wooden doors, it’s a striking and practical addition to private homes, clinical practices, offices, hotels, and the catering sector.
We have paired the automatic sliding door operator CS 80 MAGNEO, renowned for its solenoid technology and dormakaba’s elegant Contur design, with our cavity pocket system. Its slender, linear construction and noiseless, reliable function integrate seamlessly, offering a sleek look that is both visually appealing and easy to install.

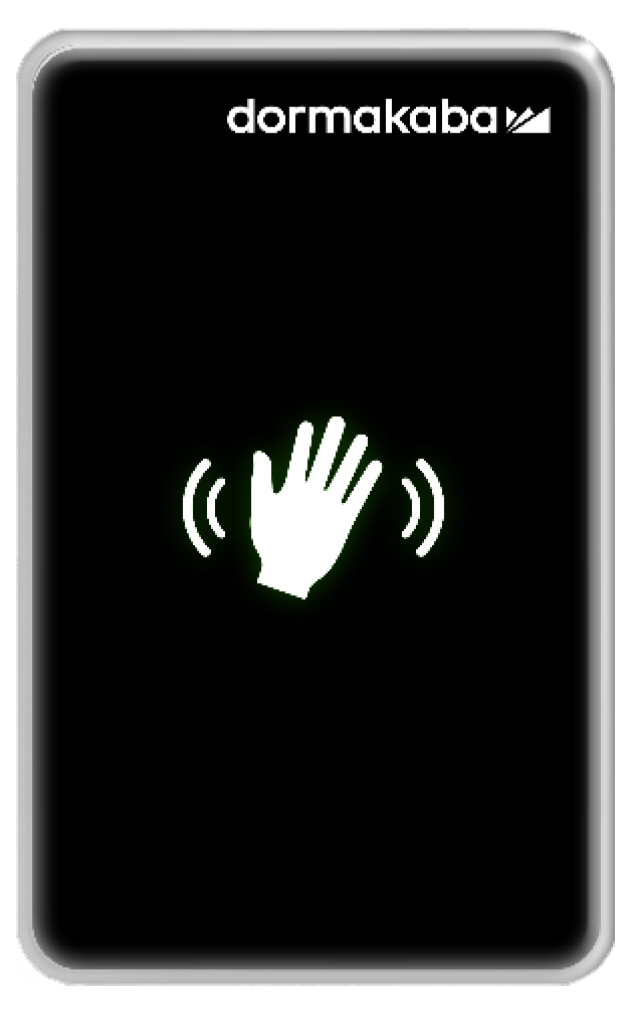

Magic Switch
The dormakaba Magic Switch serves as a non-contact switch and used the most reliable technology on the market for motion detection: the Doppler effect, which offers the best possible detection.
The opening is triggered by a simple hand movement in front of the sensor; the switch does not have to be touched. This attribute enables an absolutely essential in certain environments hygienic opening.
![](https://triline.net.au/wp-content/uploads/2024/06/Touchless-switch-1200px-x-1200px-1024x1024.jpg)
Discover the elegance and efficiency of the CS 80 MAGNEO automatic sliding door system. With its slender, linear design and noiseless operation, it seamlessly integrates into modern homes, commercial spaces, and hospitality venues. Ideal for various door types and mounting options, this system is perfect for those seeking a blend of style and functionality.
Specifications:
- Door Width Options: 875, 1000, 1125mm
- Door Panel Weights: 20 to 80 kg
- Locking Device: Required
- Suitable for full-glass, framed glass, wooden, and metal doors
Features:
- Advanced Magnetic Technology: Ensures smooth and reliable operation.
- SoftMotion Safety: Stops and reverses on light contact.
- Multiple Activation Methods: Push&Go, push button, radar motion detector, radio remote control, and auto switch.
- Compliance: Meets Australian standards AS. 1428-2009 for accessibility for disabled persons.
- Quiet Operation: Super quiet function for noise-sensitive environments.
- Easy Installation: Designed for quick and easy installation with minimal commissioning.
- No Access Hatch Required: Auto operator is easily removable without the need for access hatches in plaster wall linings.
Benefits:
- Enhanced Accessibility: Hands-free operation and optimal speeds.
- Improved Hygiene: Reduces contact points.
- Increased Safety: Prevents unwanted entry and reduces accident risks.
- Space Efficiency: Maximizes usable space.
- User Convenience: Multiple activation methods.
- Versatility: Suitable for residential, healthcare, hospitality, and commercial settings.
- Easy Maintenance: Simplified servicing without needing a wall access hatch.
Methods:
- Push&Go: Door opens with a slight push and closes automatically with adjustable hold-open time.
- Push Button: Activates the door easily and closes automatically after use.
- Radar Motion Detector: Fully automatic opening and closing.
- Radio Remote Control: Wireless operation.
- Auto Switch: Operated by a transponder, ideal for wheelchair users, allowing automatic activation without manual input.
Customization:
- Internal or wall-mounted program switch (EPS-S3) to change operation modes
- Adjustable hold-open time
Power Failure:
- In the event of a power failure, the door can be opened and closed by hand
Product Brochures: Download comprehensive brochures that detail the CS 80 MAGNEO’s features, benefits, and technical specifications.
Installation Guides: Access step-by-step installation guides designed for glass, metal, and timber workers, as well as competent laymen.
Technical Data Sheets: Detailed technical data sheets available for deeper insights into the product’s performance and compatibility.
Residential: Perfect for high-end homes, offering a seamless, stylish look and practical functionality.
Healthcare: Enhances hygiene and accessibility, crucial for patient and staff safety.
Hospitality: Ideal for restaurants and cafes, allowing waitstaff to easily navigate with full hands.
Commercial Spaces: Enhances aesthetic appeal and functionality in office buildings and retail environments.
